DRCA Raschel Warp Knitting Machine for Vegetable Net Bags

1
MOQ
$28,050
preço
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Componentes principais: PLC, caixa de engrenagens, bomba
Grau automático: manual
Capacidade de produção: 80%
Tensão: De acordo com o país comprador
Poder: De acordo com o país comprador
Modelo: DRCA
Largura de trabalho: 80 '', 170 '', 260 '', 330 ''
Tipo de nó: E2, E3, E6
Barras: 2 ~ 9 barras
Peso: 12000 kg
Motor principal: 5,5 kW, 7,5 kW
Motor de avanço: 0,75 kW, 1,5 kW
Velocidade: 600 RPM
Tamanho da máquina: 6000x6600x2500, 8200x6600x2500, 1000x66600x2500
Peso da máquina: 9000 kg, 12000 kg, 15000 kg
Destacar:

Raschel warp knitting machine for vegetable nets

,

Agricultural netting machine with warp knitting

,

Vegetable net bag knitting machine
Informação básica
Lugar de origem: Jiangsu, China
Marca: Chenye
Condições de Pagamento e Envio
Descrição de produto
Vegetable Onion Bag Netting Machine - Agricultural Raschel Bag Net Machine
Product Specifications
Attribute Value
Video Outgoing-Inspection Provided
Machinery Test Report Provided
Core Components PLC, Gearbox, Pump
Automatic Grade Manual
Production Capacity 80%
Voltage According to buyer country
Power(W) According to buyer country
Dimension(L*W*H) Different size
Warranty ONE YEAR
Product Name Raschel Warp Knitting Machinery
Model DRCA
Working Width 80'',170''.260'',330''
Knot type E2,E3,E6
Bars 2~9 bars
Applicable Industries Hotels, Restaurant, Retail, Food & Beverage Shops
Showroom Location Egypt, Brazil, South Korea, Bangladesh, Kazakhstan
Marketing Type Ordinary Product
Warranty of core components 1 Year
Condition New
Features Fast and high production
Application Producing net
Weight 12000 KG
Product Application
  • This machine is used to produce shading net, vegetable mesh bag, fruit bag, forage frass net, pallet net, etc.
  • This type machine is open cam gearing and 3-rollers positive yarn let-off system
  • Gauge: E2, E3, E6
  • Number of bars: 2~9
  • Take-up Manner: Separately-standing
Machine Type Machine Size Machine Weight(kg) Main Motor(KW) Inching Motor(KW) Speed(rpm)
DRCA-170 6000x6600x2500 9000 5.5 0.75 600
DRCA-260 8200x6600x2500 12000 5.5 1.5 600
DRCA-330 1000x66600x2500 15000 7.5 1.5 600

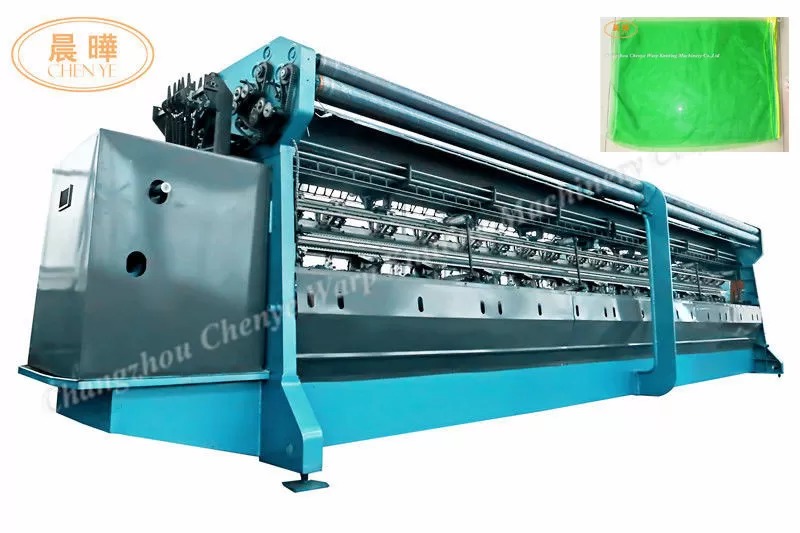

Machine Gallery
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags 0
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags 1
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags 2
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags 3
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags 4
Products Made With This Machine
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags 5
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags 6
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags 7
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags 8
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags 9
Our Service
We will dispatch engineer to your factory to commission the machine and teach your workers how to operate the machine.
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags 10
Packaging & Delivery
Packaging Details: We will use PE film for packing or pack it according to customer's special request. Spare parts in wooden box. All machines fixed with steel string.
Size Weight
40HQ 1.2 T
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags 11
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags 12
DRCA Raschel Warp Knitting Machine for Vegetable Net Bags 13
